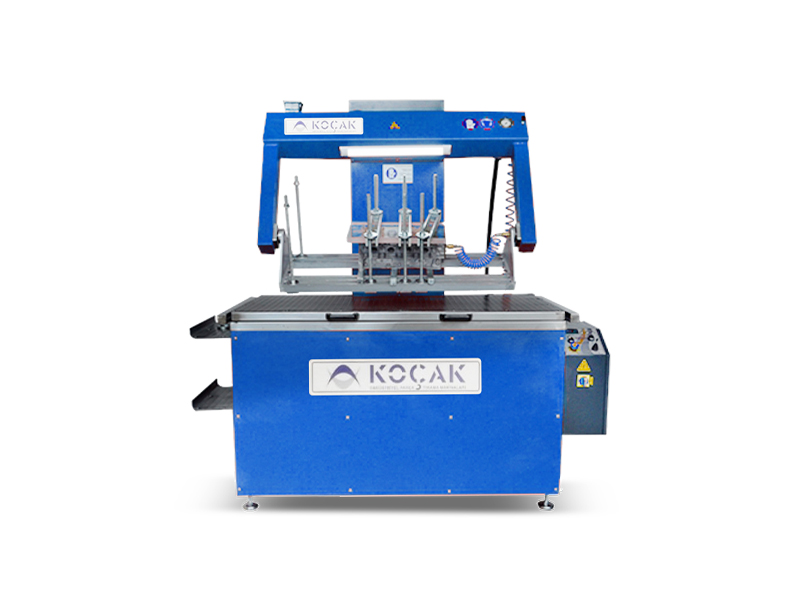

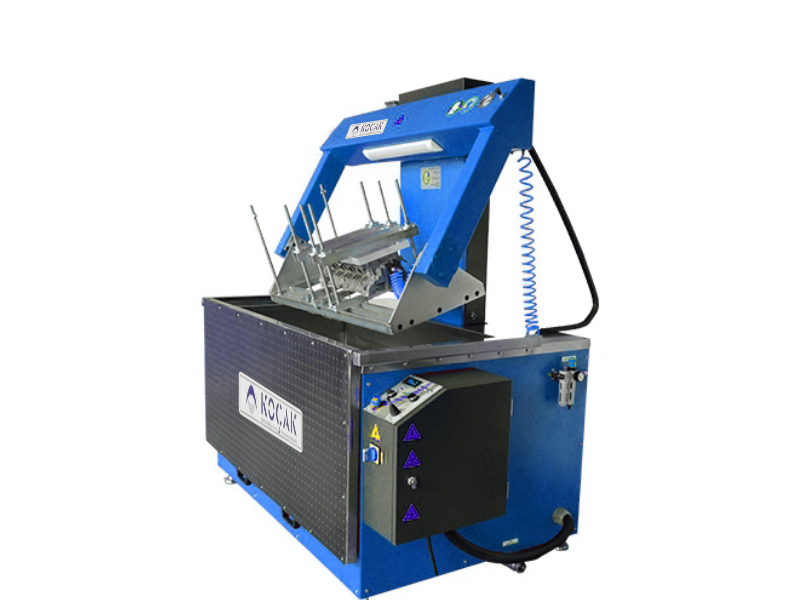

Cylinder Head Crack Testing Machine 1600-1800
Details
FEATURES
- Quick and easy clamping system
- Hydraulic lift for easy positioning of heavy cylinder heads
- Heat-insulated stainless steel tank
Technical Specifications
| Feature | KT-1600 | KT-1800 |
|---|---|---|
| Machine Dimensions (LxWxH) | 2000x1050x1600 mm | 2000x1100x1800 mm |
| Cylinder Head Length Max. | 1100 mm | 1300 mm |
| Cylinder Head Width | 360 mm | 420 mm |
| Cylinder Head Height | 400 mm | 450 mm |
| Weight | 250 kg | 350 kg |
| Tank Capacity | 500 lt | 700 lt |
| Heater | 2x10 kW | 2x10 kW |
| Thermostat | 0-90 °C | 0-90 °C |
| Electric/Phase | 220-380 V / 3 | 220-380 V / 3 |
| Approximate Total Weight | 550 kg | 680 kg |
